Features :
As the original, this magazine contents 2 CO2 cartridges and ammos :
- 25 for the standard version
or
- 300 (in a reservoir) for the Quick Relaod version
The clamping key is in the magazine for the standard version, and separately for the QR version
Loading :

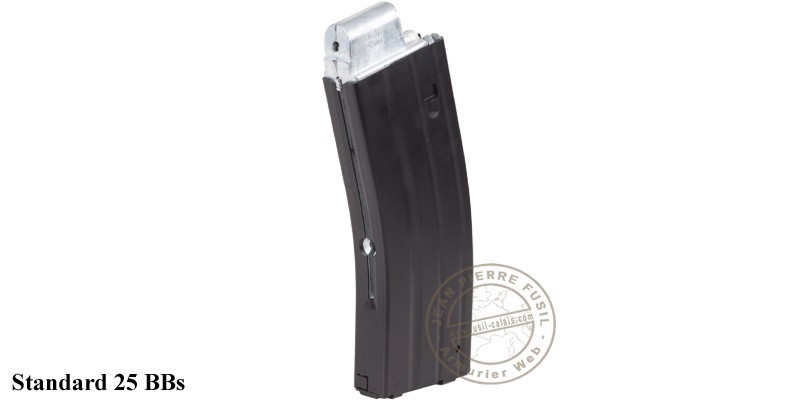

Standard magazine 25 BBs :
Open the right side of the magazine, pulling it from the underside, insert the 2 CO2 cartridges and clamp them with the key (begining with the left one). Close it
Pull the spring down, load the BBs, and release it slowly.

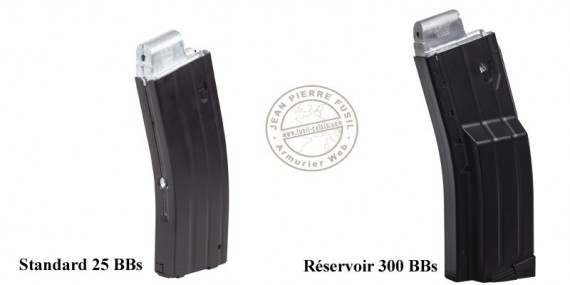

Quick reload magazine with 300 BBs reservoir :
Lift up the back of the magazine, pulling it from the underside, insert the 2 CO2 cartridges and clamp them with the key (begining with the left one). Close it
Open the trap underside, fill with the BBs and close it.
Underside, pull the tab entirely (clic), and shake it horizontally to load the BBS. Push it back on place.
Make this operation each time the 25 BBs have been shot.
Compatibility :
For CROSMAN DPMS SBR CO2 Full auto assault rifle - .177 BB bore
- Manufacturer
- CROSMAN AIRGUNS
- Caliber
- .177 (4,5 mm)
- CO2 cartridges
- 12g
- Ammunition
- BBs
- Lenght
- 7.28" / 7.87"
- Width
- 2.56"
- Thickness
- 0.98" / 1.97"
- Weight
- 1.43 Lbs / 1.54 Lbs
- Legislation
- D category equipment (free sale over 18 years old)
- Origin
- Taiwan
- Catégorie
- Accessoire
