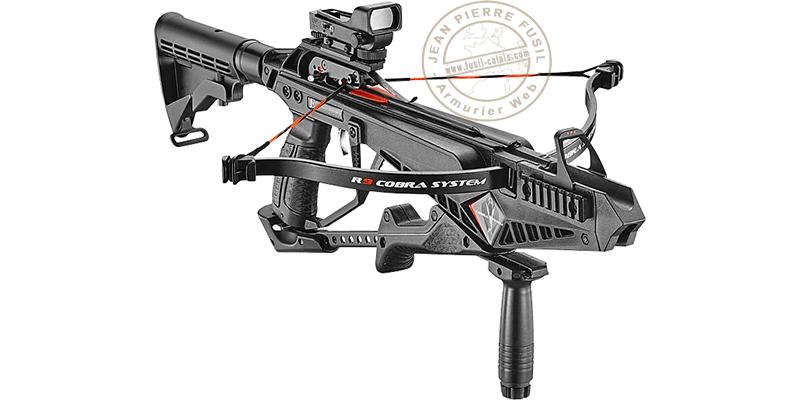

Ek Archery - Crossbow Cobra System R9 Deluxe - 90 Lbs

Reference : B550

€299.00
€239.20

Article indisponible

Find out more

Features

  • Aluminium and composite body
  • Bow 90 Pounds in fibreglass
  • Ultra resistant rope - pre-assembled
  • Telescopic handle + folding handle
  • Automatic security
  • Anti-shooting system when empty, to avoid damaging or breaking the bow.
  • Natural sights : V-notch at the back, and 3 fibre dots at the front
  • 1 Picatiny rail on top, 1 underneath and 2 on the sides

Specifics

The Ek Cobra R9 crossbow has 2 very interesting technical features :

  • a quick arc assembly/disassembly system by spindle (no screws), very practical for transport,
  • a simplified arming system using a lever under the handle.

Use of the crossbow pistol

  • Mounting the bow : Slide the retaining pin from right to left (without removing it) to free the slot. Slide the bow in, and then put the pin back in, in order to block the bow.
  • Arming : Engage the safety. Unlock the cocking lever under the handle by pulling the lock backwards. Push this lever forward until the string catches (the safety will engage), then return it to its initial position and lock it.
  • Place an arrow on the rail, and slide it up to the rope retention hook: if the arrow is not pushed all the way in, the anti-pulling system will remain engaged, and the shot will not be able to be made.
  • The crossbow is ready, all that remains is to disengage the safety and shoot.
  • Tip : remember to grease the rope regularly (every 5 to 10 shots), to preserve its life span.

Pack

The Cobra System R9 crossbow pistol is delivered with :

  • the bow with its string already mounted,
  • a red dot
  • a transport sling
  • 6 carbon arrows 7,5",
  • 1 pair of protective glasses,
  • a tube of wax.
Manufacturer
EK ARCHERY
Cocking
Lever
Stock
Synthetic
Material
Aluminium
Safety
Automatic
Anti dry fire
Yes
Rear sight
En V
Front sight
3 points optic fiber
Dovetail rail
Picatinny / Weaver
Mounted string
Yes
Stirrup
No
Lenght
20.86"
Width
18.78"
Weight
4.41 Lbs
Velocity
240 Fps
Energy
90 Lbs
Legislation
D category weapon (free sale over 18 years old)
Pack
Yes
